EVAline
Line lighting for swimming pools and sports facilities
Swimming pool environments are among the most demanding spaces for lighting. Heat, humidity and chlorine place a constant strain on any lighting system. Where standard solutions fall short, EVAline offers a well-designed and proven system that has been specifically developed to perform under these extreme conditions.
EVAline was developed with a single goal in mind: to create an optimal visual experience for both users and pool managers.

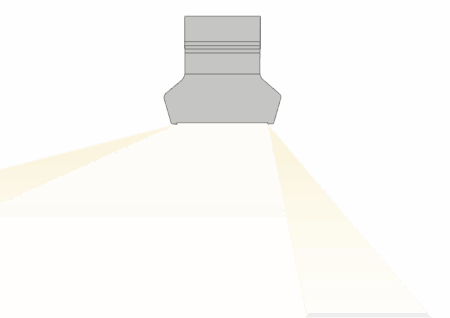

Asymmetrical lighting
Complete control over light distribution
Every application requires a different light distribution. EVAline therefore offers a range of configurations.
Together, we will determine the optimal solution for your project, fully tailored to its intended use, architectural design and regulatory standards.
EVAline
Asym

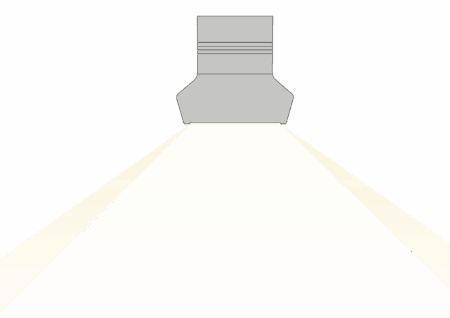

Wide

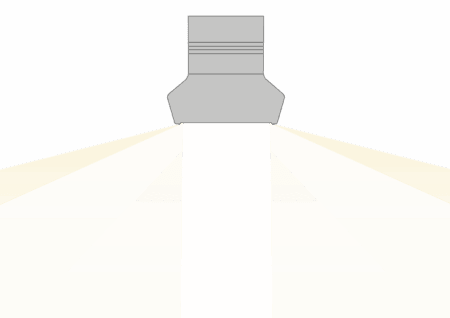

Extra wide
Case studies

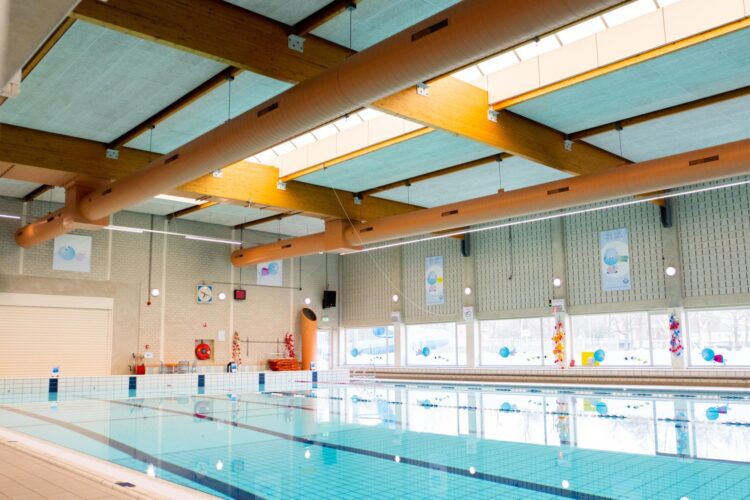

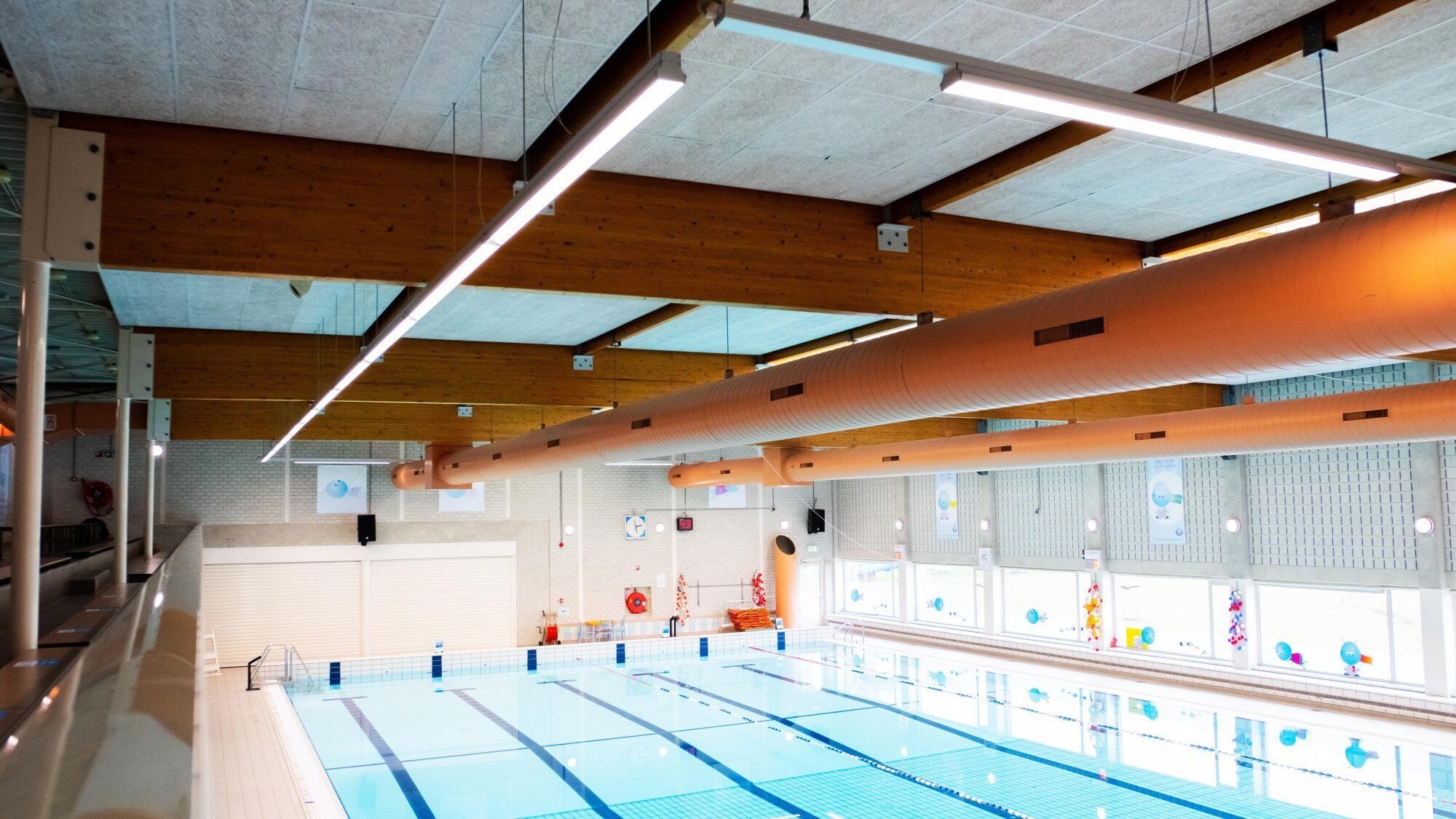

Stappegoor creates calm lighting scene for swimmers and supervisors with asymmetrical line lighting
“Together with EVA Optic, we were able to offer and replace the lighting. To create the desired light image, EVA Optic advised the application of its asymmetrical light line. There are no more light fixtures hanging above the bath.”

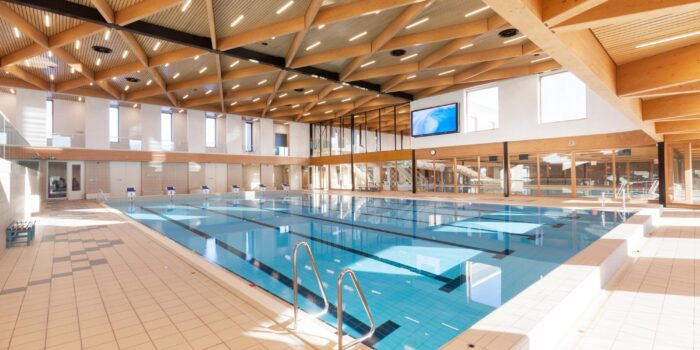

Noorderparkbad – Amsterdam

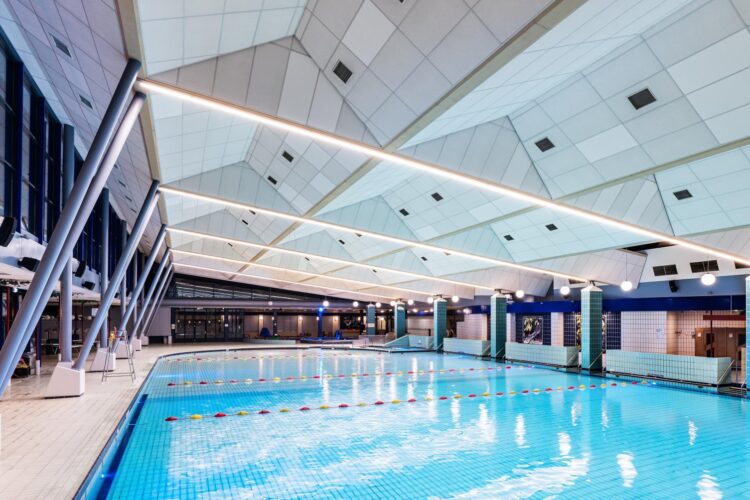

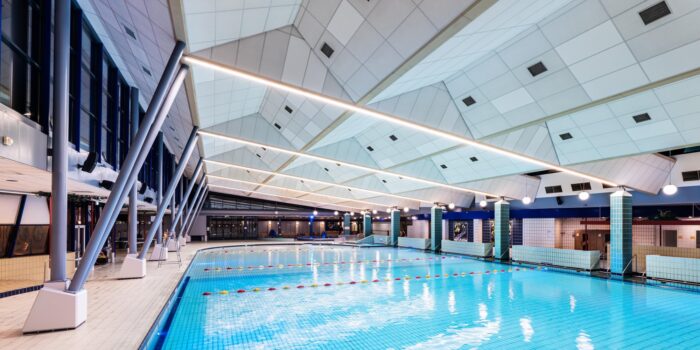

Ottenbad – Eindhoven

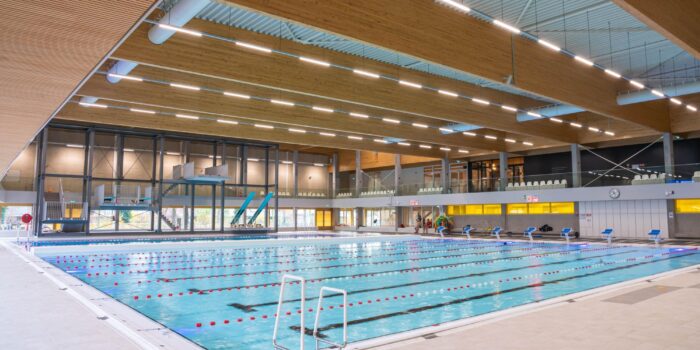

Aquatopia – Aalst
Asymmetrical lighting: tranquillity and efficiency
EVAline is the only swimming pool lighting system designed entirely for asymmetrical light distribution. Whereas traditional systems scatter light widely and uncontrollably, EVAline directs the light precisely to the areas where illumination is required. This creates a calmer, more even and more comfortable lighting environment throughout the entire pool.
The asymmetrical optics enhance visual comfort for both swimmers and supervisors. This ensures a more pleasant experience, particularly during backstroke and recreational use. At the same time, sightlines for supervision and safety around the pool are significantly improved.
Advantages:
- No glare over the water
- A softer, more comfortable light distribution
- Improved sightlines for surveillance and safety
- Less light loss outside the pool
- Greater efficiency thanks to directional light distribution
Because the light is emitted at a specific angle, only the necessary areas are illuminated. This not only enhances comfort and safety, but also makes the system significantly more efficient than traditional symmetrical lighting. The result is professional pool lighting with maximum control over light quality, atmosphere and energy consumption.
Designed for Extreme Conditions
In a swimming pool environment, warm air rises, meaning that the temperature where the lighting is installed (often 6 metres or higher) can reach as high as 45°C. Whilst many standard LED systems are not designed to cope with this, the EVAline has been specially developed to perform reliably under these extreme conditions.
Auto Temperature System (ATS)
The EVAline is equipped with the intelligent ATS system. This system continuously monitors the temperature of the LEDs. If necessary, the power output is subtly adjusted to prevent overheating. This guarantees maximum service life, regardless of the ambient temperature.
Chlorine and Corrosion Resistance
The luminaires are manufactured from high-quality clear anodised aluminium. In combination with the PoolFIX® certified fixing materials (A4/316 stainless steel with a special coating), the system is fully protected against the aggressive chlorine vapours that normally corrode metals.
Smart modular system
EVAline is based on a flexible modular concept:
- Base module – the backbone of the system
- Light modules – positioned exactly where light is needed
- Cover modules – for a sleek and seamless finish
This ensures maximum freedom in design and installation. Light lines can be installed as continuous runs or in sections, depending on the lighting plan and the architecture. In addition, the smart click system makes installation quick, safe and easy to maintain. With no risk of damage or corrosion.

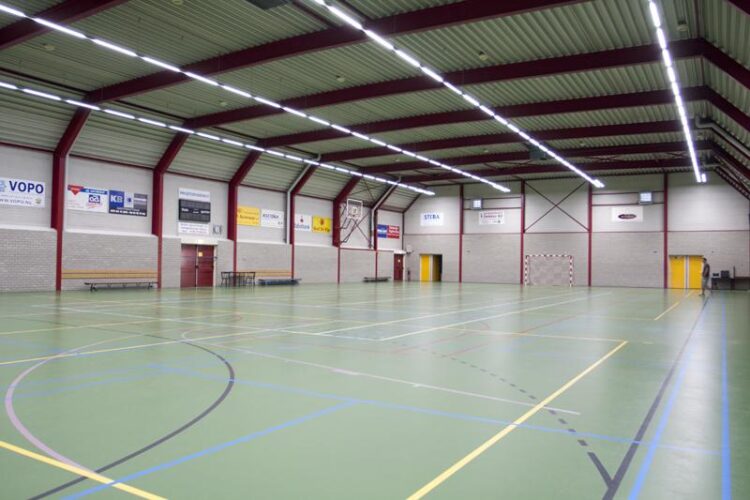

EVAline Sport: Maximum Performance in the Sports Hall
In addition to meeting the specific requirements for swimming pools, the EVAline is also the ideal solution for sports halls and gyms. Lighting in a sports hall must be robust and comply with strict guidelines.
Developed and manufactured in the Netherlands
EVAline is developed and manufactured entirely in-house in the Netherlands. This allows us to maintain maximum control over quality, innovation and reliability. From engineering and electronics to assembly and quality control: every step in the process is carried out by our own specialists.
With over 15 years’ expertise in swimming pool lighting, we develop systems that can withstand the harshest conditions in swimming pools, wellness facilities and elite sports venues. We use only high-quality, recyclable materials to ensure a long service life and sustainable performance.
This guarantees:
- In-house development and production in the Netherlands
- Continuous testing and quality control
- High-quality and sustainable materials
- Over 15 years’ expertise in swimming pool lighting
- Standard 4-year warranty
Customised solutions and advice
No two swimming pool projects are the same. That is why we offer comprehensive support from the initial design phase right through to completion. Our engineers actively contribute ideas regarding light quality, aesthetics, efficiency and technical integration within your project.
We provide, among other things:
- Lighting calculations and bespoke advice
- Complete lighting plans including lux calculations
- Integration into any architectural design
- Flexible configurations and bespoke solutions
Let us advise you: from lighting design to installation
Would you like to know which lighting is best suited to your project?
Send us your floor plan or drawing. Our engineers will draw up a suitable lighting plan, including a lux calculation and a price estimate, with no obligation.
